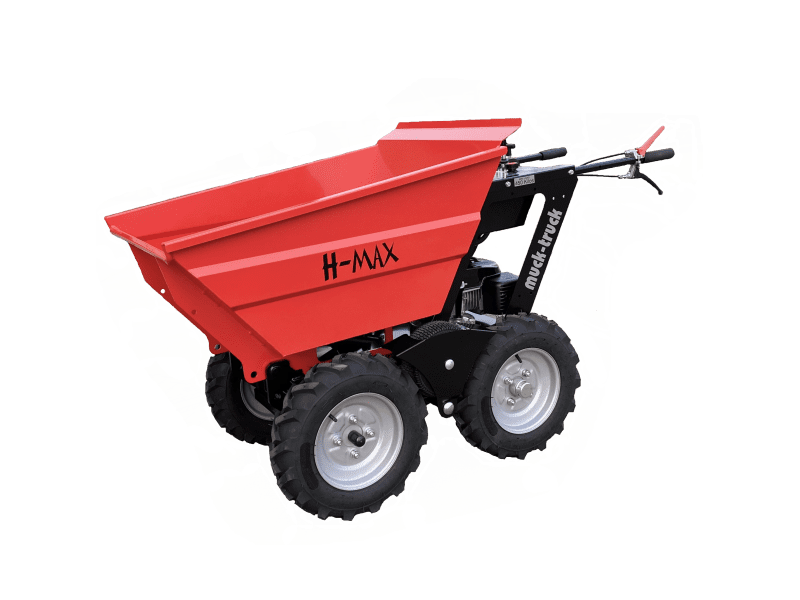

H-Max™ – 8cu ft. skip/bucket

The H-Max is an engine-powered machine with Hydraulic Tipping, making it much easier to empty the skip.

It can carry 800lbs/365kg/8cu ft and will climb a 30º slope fully loaded.

The machine is fitted with the Honda GXV Commercial grade 5.5hp engine and the transmission drive axle has 3 forward and 1 reverse gears – the same engine and transmission as Muck-Truck® and Max-Truck™ as they has been tried and tested for over 30 years.

Original price was: $6,144.87.Current price is: $4,900.00.USA ONLY Special Price Excl Delivery

Hydraulic tipping technology makes tipping easier: just push the lever forward

Built with extra reinforcement metalwork – sturdier/stronger for the extra load

Balanced weight distribution and longer handles for steering as easy as the rest of the Muck-Truck® range.

Measures 29″ (736mm) in width, 72″ (1828mm) in length for easy onsite access.

All the metal work is laser cut and powder coated for a perfect finish

Specifications

Model: H-Max™
Engine: Honda GXV 160 Commercial 5.5hp
Transmission: 3 forward / 1 reverse
Speed: 0-3.5mph
Fuel: Unleaded Petrol
Capacity: 8cu/ft – 800lbs/365kg carrying capacity
Noise Rating: Up to 98db
Parking Brake: Disc
Wheels: 4 x 400×10, 4 ply tractive
Dimensions: (L) 72″ x (W) 29″ x (H) 42″ / (L) 1828mm x (W) 736mm x (H) 1066mm
Weight: Unladen 407lbs./185kg
Traction: 4 Wheel drive

The H-Max™ can carry 800lbs/365kg/8cu ft and will climb a 30º slope fully loaded. The machine is fitted with the Honda GXV Commercial grade 5.5hp engine. The transmission drive axle has 3 forward and 1 reverse gears. Yes, the H-Max™ is being run with the same engine and transmission as Muck-Truck® and Max-Truck®, as it has been tried and tested for over 30 years.

What makes the H-Max™ special is the Hydraulic tipping technology that makes tipping easier, just pushing the hydraulic lever forward. Balanced weight distribution and longer handles allow the steering to be as easy as the rest of the Muck-Truck® range.

Learn more about Muck-Truck®’s full range of accessories.

H-Max™ Commercial Hydraulic Power Buggy & Motorized Wheelbarrow

The H-Max™ is a commercial-grade motorized wheelbarrow featuring advanced hydraulic power dump technology that makes unloading heavy materials completely effortless. Engineered for heavy-duty material handling on the toughest jobsites, this high-performance power buggy boasts a massive 800 lbs / 8 cu/ft) capacity and will easily climb a steep 30º slope while fully loaded.

Effortless Hydraulic Power Dump & Superior Ergonomics

What truly sets the H-Max™ apart from standard power wheelbarrows is its operator-first engineering.

  • Hydraulic Lever Activation: Emptying the skip is completely effortless—just a simple push of the hydraulic lever dumps the load quickly and safely.
  • Extended Steering Handles: Designed with longer, extended handles and perfectly balanced weight distribution, steering and maneuvering this heavy-duty unit is incredibly smooth and easy.

Tried, Tested, and Trusted Powertrain

Built for maximum jobsite reliability, the H-Max™ is fitted with a commercial-grade 5.5hp Honda GXV engine. Its rugged transmission drive axle features 3 forward and 1 reverse gears. The H-Max™ utilizes the exact same legendary engine and transmission system found in the world-renowned Muck-Truck® and Max-Truck™ models—industrial powertrains that have been tried, tested, and trusted by professional contractors for over 30 years.

Muck-Truck Warranty

Muck-truck Warranty begins with the date of Purchase. The Sales Invoice or other Proof of Purchase will validate the Warranty start date. When Proof of Purchase or Ownership is not available, the Machine Serial Number will be used to determine the manufacturing date of the product.

Please download the warranty claim form and once the form is completed, please send it to admin@mucktruck.com for approval.
